10ft Container Cold Room systems combine an insulated storage space, refrigeration equipment and temperature control within a compact container enclosure. TunelGroup configures each unit for the product, operating temperature, site climate and daily loading pattern.
The compact format suits sites where storage space is limited or demand changes between locations. An integrated enclosure keeps the main cold-room components together for delivery and installation.
+12/+18°C
-5/+5°C
+5/-18°C
-18/-25°C
-30/-40°C
Each band represents a configuration to be specified for the project. The final operating range depends on the refrigeration system, insulation, ambient conditions and product load. Specialist low-temperature duties require a separate engineering assessment.
Additional cold storage for kitchens, retailers, processors and distributors. The temperature and loading arrangement are selected for the specific product, packaging and holding period.
A compact storage unit for peak trading periods, temporary facilities or phased site expansion. Delivery access, electrical supply and the final location are planned before dispatch.
Product-specific configurations can account for temperature, airflow and humidity needs. Humidity-control equipment is defined separately where the application requires it.
The project brief should establish the required temperature limits, monitoring, alarms and qualification process. These requirements determine the final specification and verification scope.
For use while goods are in transit, define the transport power supply, equipment duty and approval requirements at quotation stage.
The 10ft format is useful where a full-size cold store would occupy too much space. Confirm door access, condenser ventilation and maintenance clearances around the enclosure.
Insulation, door, refrigeration and controls are coordinated within one project. A clear equipment schedule helps the operator understand the supplied scope and site connections.
A container format can support relocation when business needs change. Handling arrangements, lifting points, unit weight and the condition of the receiving site must be confirmed for each move.

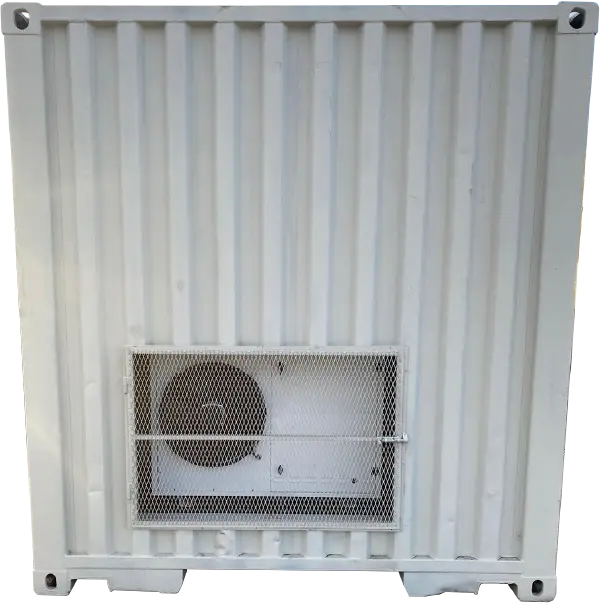

A service area allows inspection of the refrigeration components. Keep the condenser’s intake and discharge paths clear and provide access for coil cleaning and maintenance.
Usable capacity follows the internal layout: insulation thickness, equipment clearance, packaging, shelves and access aisles all affect the available storage space.
A project quotation should define the following items together. These details establish the supplied configuration and the work required at the installation site.
| Container format | 10ft class enclosure; final external dimensions and transport envelope confirmed on the drawing |
|---|---|
| Usable storage space | Determined after insulation, evaporator, door and circulation clearances are allowed for |
| Temperature selection | Project-specific configuration selected from the required operating band |
| Insulation | Wall, ceiling and floor construction coordinated with temperature and ambient conditions |
| Refrigeration duty | Sized from product intake, entry temperature, cooling time, ambient conditions and door use |
| Access and floor | Door opening, threshold, floor finish and allowable loading confirmed for the handling method |
| Electrical supply | Voltage, phase, frequency, connected load and protection requirements stated in the quotation |
| Control and monitoring | Digital temperature control; alarm, logging and remote access options defined in the scope |
| Site services | Level bearing surface, condenser ventilation, electrical connection and condensate arrangements |
Cooling duty matters: holding products that are already cold and cooling newly loaded warm products create different refrigeration loads. Provide the entry temperature, daily intake and required cooling time for equipment selection.
Choose the format from the required usable capacity, loading arrangement and available installation space.
Share the installation country and city, stored product, target temperature, daily intake, product entry temperature, storage period, electrical supply and access requirements. Include any monitoring, shelving, humidity-control or transport requirements.
