Roll-up doors provide fast access between production, storage and loading areas. TunelGroup offers folding, rolling, zipper-guided, modular and insulated models, allowing the door to be matched to traffic frequency, exposure and temperature requirements.
A busy interior passage, an exposed exterior entrance and a freezer doorway place different demands on the curtain, frame and controls. Start with the operating conditions, then select the model and options.
For temperature-controlled access, the FREEZER ROLL model provides an insulated curtain. Thermal suitability for other models should be confirmed for the specific installation.

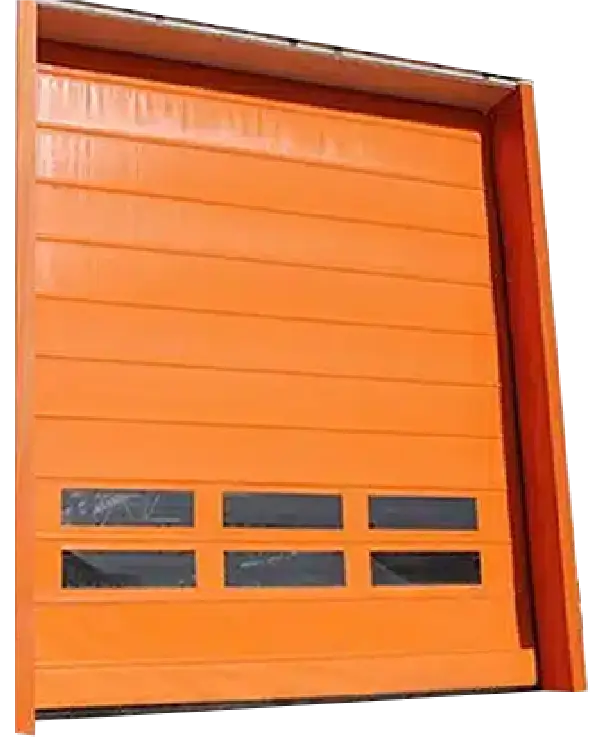

The FLEX model is designed for busy openings where a reinforced folding curtain is required. Its galvanized steel construction and horizontal reinforcement make it a practical option for exterior access, subject to the opening size and wind conditions.
Curtain reinforcement is selected according to door dimensions. The published construction includes 2 mm galvanized steel uprights, with an optional painted finish.
Transparent PVC windows improve sightlines across the opening. A vehicle loop detector or remote control can be specified to suit the traffic route.
Confirm the required wind resistance, mounting structure and available headroom before selection. The published operating speed is 0.7 m/s with the EP-500 control unit.

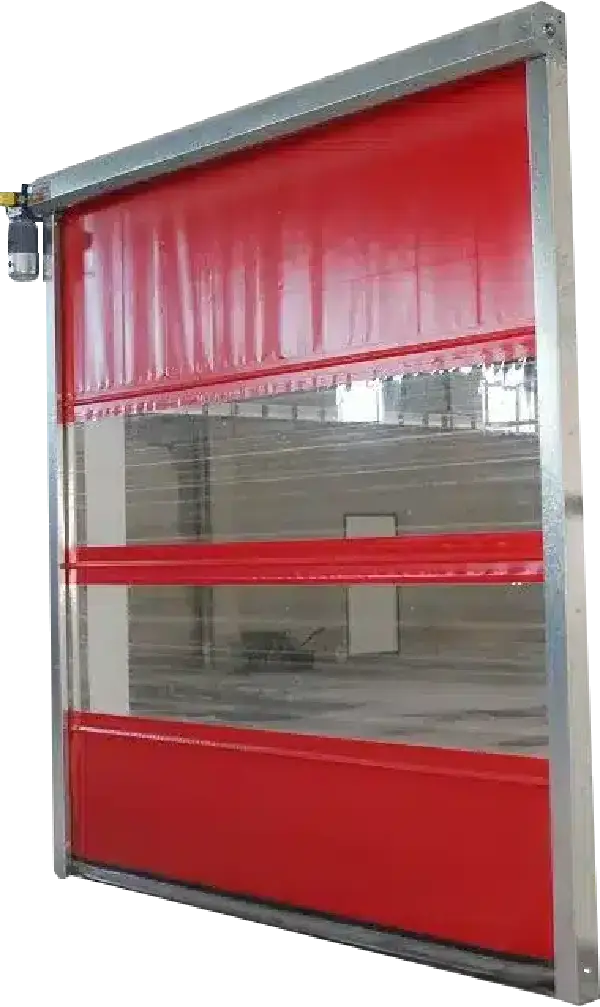

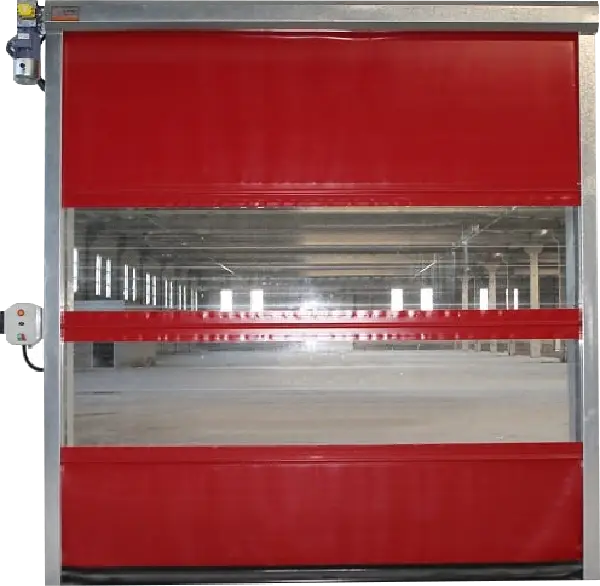

The ROLL model provides rapid access between working areas. The flexible PVC curtain rolls above the opening, helping keep production and warehouse routes clear during frequent daily movements.
Published operating speeds range from 0.7 to 1.5 m/s. The selected drive, controls and opening size determine the final operating configuration.
Transparent PVC vision areas can be arranged to improve visibility. Steel bars or a bead system may be used for curtain reinforcement, while curtain colour and printing can be specified.
Suitable applications include warehouse passages, production areas, food processing facilities and distribution centres. For refrigerated areas, confirm the thermal duty of the selected door assembly.

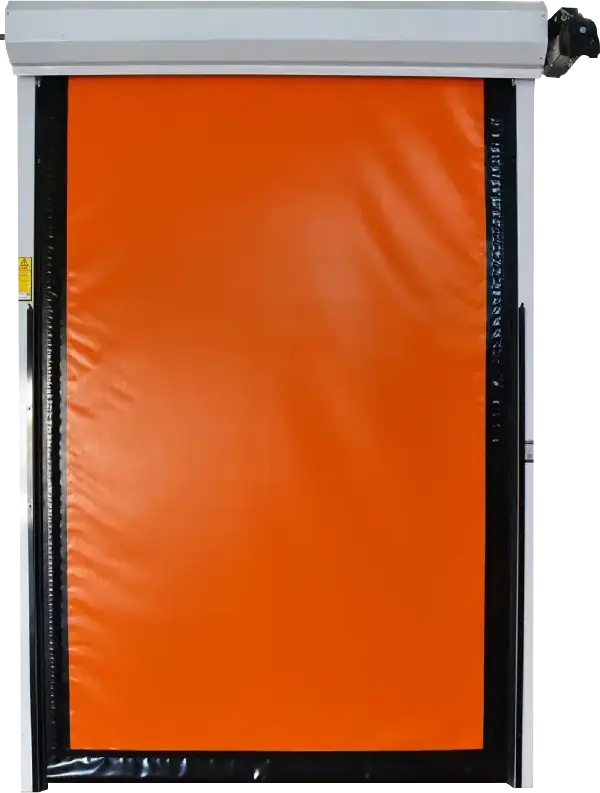

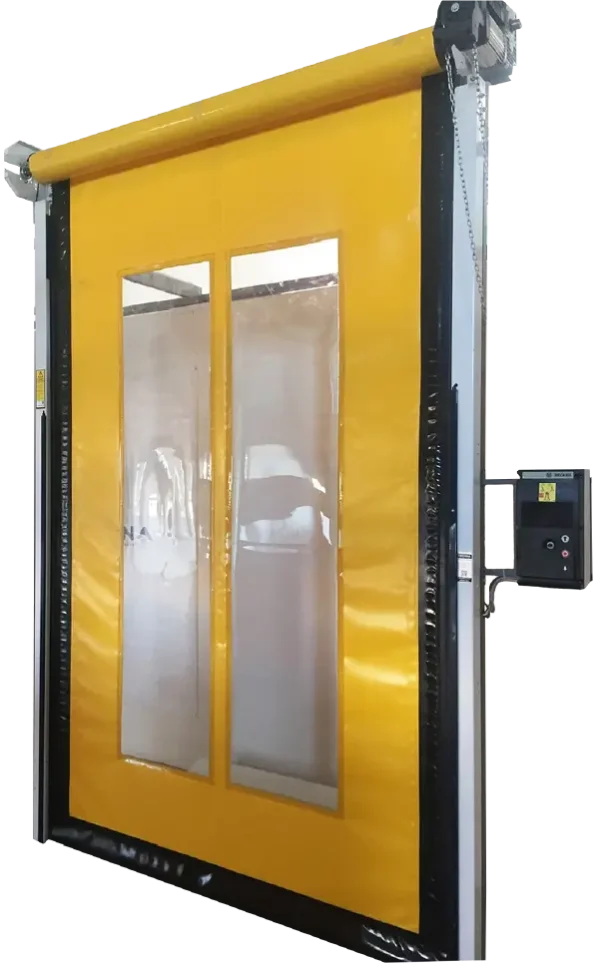

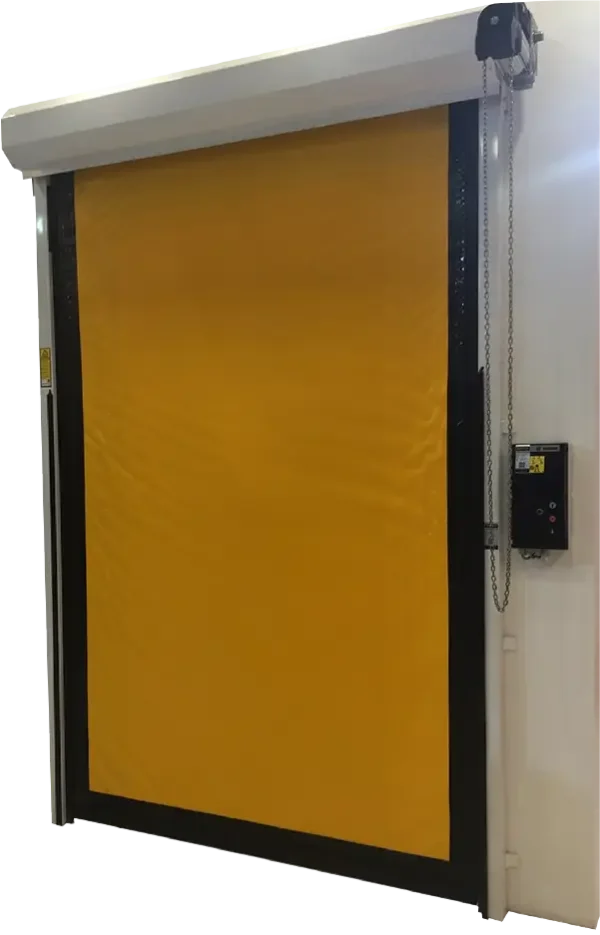

ZIPPER ROLL uses guided flexible curtain edges and a soft bottom edge for busy industrial passages. The curtain guidance is designed to allow re-insertion after certain curtain dislodgements, helping limit interruption to everyday operations.
The zipper arrangement guides the curtain along both sides of the opening. Indoor or outdoor suitability must be matched to the door size and specified wind resistance.
The re-insertion feature concerns a displaced curtain. Damage to the frame, drive, sensors or curtain still requires inspection and, where necessary, repair.
The published operating speed is 0.7 m/s with the EP-500 control unit. Activation zones and protective devices should be specified for the actual traffic pattern; a soft bottom edge alone is not a complete safety system.
MOD ROLL combines a flexible PVC curtain with modular aluminium profiles. It is intended for frequent indoor use and locations with limited wind exposure, with a construction that supports replacement of individual damaged sections.
Aluminium profiles connect the curtain sections. This arrangement allows the affected section to be assessed and replaced without automatically replacing the complete curtain.
Transparent vision sections can be incorporated into the curtain. The aluminium bottom rail carries a bottom seal to help close the gap at the floor.
The published speed range is 0.7–1.5 m/s. An optical bottom safety system can be connected; confirm the complete protection package, control logic and maintenance access in the project specification.

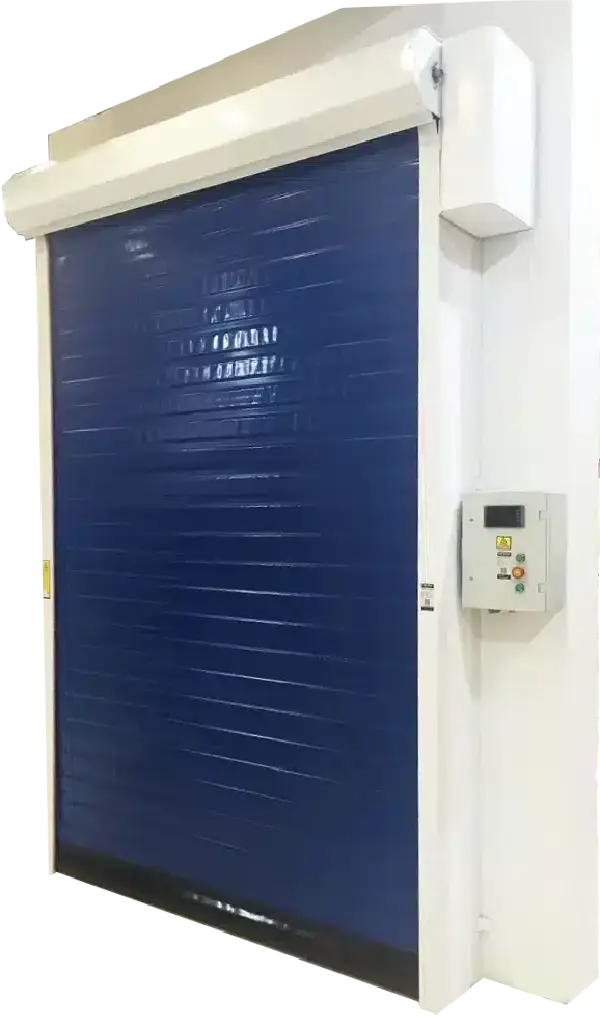

FREEZER ROLL is the insulated model for refrigerated and freezer access. The published operating range is −25°C to +40°C, with single- or double-mechanism configurations available according to the application.
The insulated curtain is designed for temperature-controlled passages. Shorter opening periods can help reduce air exchange, while the final thermal performance depends on the complete door assembly and operating conditions.
Selection should account for both sides of the opening: room temperature, warm-side humidity, traffic frequency and condensation or frost risk. Any heating or moisture-control provisions must be confirmed for the installation.
The published speed is 0.7 m/s with the EP-500 control unit. Confirm whether the selected assembly will be the primary thermal closure or work alongside an insulated cold-room door.
Use the table to shortlist a model before confirming the complete door schedule.
| MODEL | CONSTRUCTION & TYPICAL DUTY | PUBLISHED SPEED | TEMPERATURE REFERENCE |
|---|---|---|---|
| FLEX | Reinforced folding PVC curtain; exterior access | 0.7 m/s* | Confirm for the application |
| ROLL | Rolling PVC curtain; frequent interior traffic | 0.7–1.5 m/s | Confirm for the application |
| ZIPPER ROLL | Zipper-guided curtain and soft bottom edge | 0.7 m/s* | Confirm for the application |
| MOD ROLL | Modular curtain with aluminium profiles; interior access | 0.7–1.5 m/s | Confirm for the application |
| FREEZER ROLL | Insulated curtain; refrigerated and freezer access | 0.7 m/s* | −25°C to +40°C |
Published with the EP-500 control unit. These figures are product-page references. Final speed, door size, wind resistance, temperature suitability and equipment scope must be confirmed in the project quotation and approved technical schedule.
Provide clear width and height, available headroom, side clearances, wall construction and the position of nearby equipment.
Identify pedestrians, forklifts, load dimensions, approach direction and daily cycles. Select activation zones and controls around the actual route.
State temperatures and humidity on both sides, indoor or outdoor use, wind exposure and cleaning conditions. Assess condensation at refrigerated openings.
Confirm protective devices, emergency operation, electrical supply, service access and the inspection programme for the selected installation.
Planning a new opening or replacing an existing door?
Share the dimensions and operating conditions with TunelGroup to define the appropriate model, curtain and control package.
