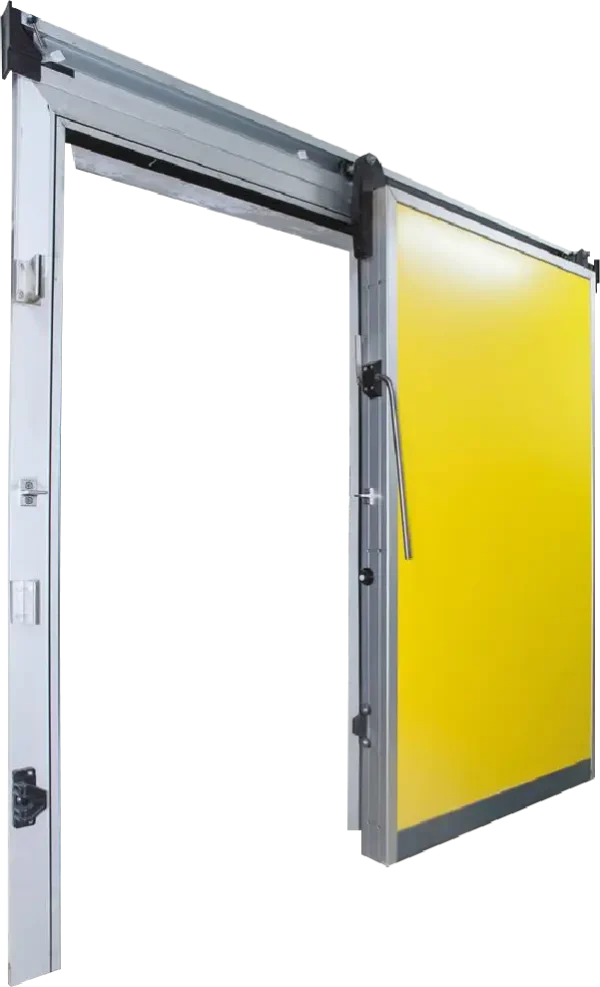

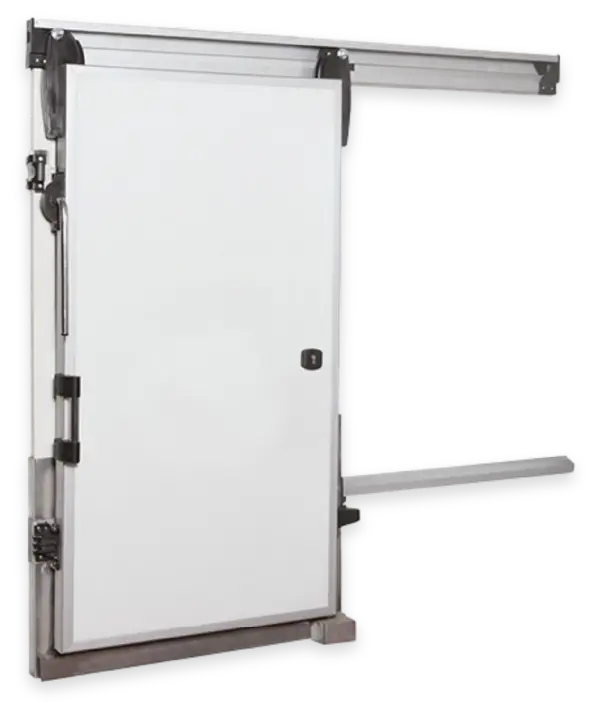

Standard Sliding Cold Room Doors provide insulated, manually operated access to chilled and frozen storage rooms. The door leaf travels sideways along a rail, allowing people, trolleys and pallet-handling equipment to pass through a clear opening sized for the facility.
TunelGroup configures the door around the required opening, room temperature, wall construction and available side space. The leaf, frame, seals and hardware are selected as one assembly.
A standard sliding cold room door uses operating handles, rollers and guides to move the insulated leaf by hand. The upper track supports the leaf, while the guides control its travel and closing position.
Sideways travel keeps the opening free of a swinging leaf. Sufficient wall space is needed beside the doorway for the door to park fully open, with access retained for cleaning and maintenance.
Slide Mechanism: Slide mechanism of modern design, exceptional sliding properties. Very soft closing and easy disengagement. Slide mechanism cover made from round, curved aluminium profile.

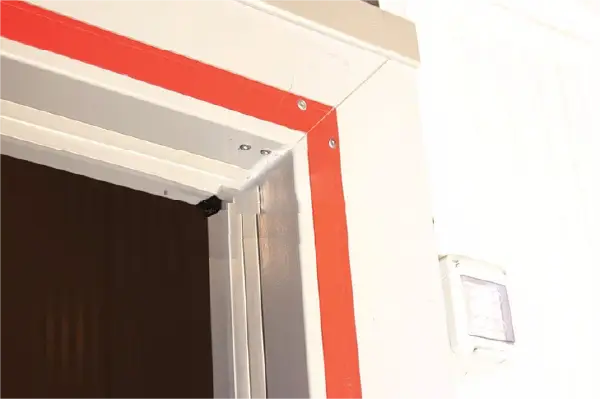

The reinforced frame incorporates PVC components and provides the mounting and sealing interface around the opening. Its connection to the insulated wall, finished floor and surrounding structure should be detailed before installation.
Rigid polyurethane insulation forms the core of the door leaf. The published nominal foam density is 42 kg/m³. Leaf thickness, facing material and finish are confirmed for the operating temperature, cleaning regime and site conditions.
The aluminium rail and roller assembly guide the door through its opening and closing movement. Correct alignment and adjustment help the perimeter seals make consistent contact when the door is closed.

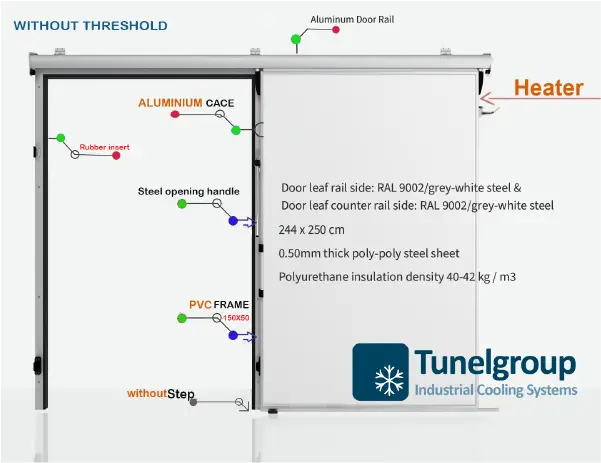

The table brings the main construction details together. Opening size, insulation and hardware should be coordinated with the room and daily traffic before manufacture.
| Operation | Manual sliding operation |
|---|---|
| Opening direction | Right-hand or left-hand arrangement, specified for the installation |
| Sliding system | Upper rail, roller assembly and lower guidance |
| Rail material | Anodized aluminium |
| Door insulation | Rigid polyurethane (PUR) foam |
| Nominal insulation density | 42 kg/m³ |
| Frame construction | Reinforced frame with PVC components |
| Clear opening | Manufactured to the project dimensions |
| Leaf thickness and facings | Selected and confirmed in the project specification |
| Sealing | Perimeter gasket system with adjusted closing contact |
| Low-temperature heating | Frame or seal heating specified where required by the application |
| Operating and locking hardware | External and internal arrangements confirmed for the selected configuration |
Door thickness alone does not determine the temperature rating or thermal performance of the complete assembly. Confirm the leaf, frame, seals, floor junction and any heating requirements together.

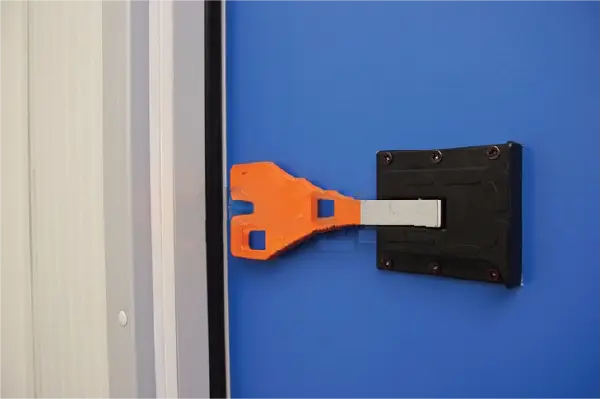

Position handles and locking hardware for practical use from both sides of the doorway. Confirm the internal release arrangement before ordering and check its operation during commissioning. Keep the door’s travel path clear of stored goods and equipment.
Gaskets seal the contact between the leaf and frame. Inspect them for gaps, damage and contamination, and correct alignment when closing contact becomes uneven. Room performance also depends on how often the door opens and how long it remains open.
Where low temperatures and moisture create a risk of icing, specify suitable frame or seal heating. Confirm the heater arrangement, electrical supply and floor-junction detail for the actual room conditions.
Routine care: keep rollers, guides and sealing surfaces clean; check fixings and door movement; and use cleaning products compatible with the supplied materials.
Clear opening width and height; room and adjacent-area temperatures; wall or panel thickness; finished floor level; opening direction; available side and overhead space; traffic frequency; cleaning requirements; and the required locking, internal release and heating arrangements.
For frequent access or larger doors, review the operating effort and duty cycle with TunelGroup. A motorized sliding door can be evaluated where powered operation is appropriate.
