Blast Freezer for Meat: TunelGroup’s Solutions for Controlled Rapid Freezing

Blast Freezer for Meat systems remove heat from chilled meat using low-temperature air directed through a carefully arranged load. TunelGroup develops project-specific rooms that combine refrigeration, insulated construction, air distribution and temperature monitoring for meat processors, packing facilities and exporters.

Each solution starts with the product: the meat cut, its thickness, packaging, entry temperature and required production rate. These details determine the room layout and equipment needed to reach the agreed product core temperature within the available freezing cycle.

Why Is Blast Freezing Important for Meat?

Freezing rate affects the quality of meat during subsequent storage and thawing. An appropriately designed process helps limit the formation of large ice crystals, while suitable packaging protects the product against moisture loss.

A blast freezer for meat coordinates four essential requirements:

• Heat removal: refrigeration capacity matched to the complete product and room load.
• Air distribution: clear flow paths through the load and back to the evaporator.
• Product protection: suitable packaging, consistent loading and hygienic handling.
• Process monitoring: representative core temperature measurements to confirm completion.

The freezing room forms one stage of the cold chain. Finished batches should move promptly into a room designed to hold already-frozen meat.

TunelGroup’s Tailored Blast Freezer Solutions for Meat

A room handling shallow trays of portions has a different duty from one freezing dense cartons. TunelGroup evaluates the intended loading format together with the required batch capacity and daily output.

Temperature reference: FAO — Manual on Meat Cold Store Operation and Management. Freezing time must be confirmed for the actual product and load.

Key Features of TunelGroup’s Meat Blast Freezers

• Custom room design: dimensions, loading lanes and door positions coordinated with your production flow.
• Insulated construction: wall, ceiling and floor details selected for the operating duty and external conditions.
• Application-specific refrigeration: equipment selected at the required evaporating and condensing conditions.
• Engineered airflow: evaporators, supply passages and baffles arranged to guide air through the product load.
• Monitoring and control: fan operation, defrost, product probes and alarms configured for the agreed process.
• Cleanable surfaces: accessible components and protected drainage to support cleaning and maintenance.

How TunelGroup Improves Meat Freezing Consistency

Consistent results depend on both equipment selection and a repeatable loading method. A defined operating brief helps the engineering team coordinate:

• Product heat load: batch weight, entry temperature and heat released during freezing.
• Airflow through the load: package spacing, fan pressure and unobstructed return-air routes.
• Complete cycle planning: loading, freezing, unloading, cleaning and defrost included in daily capacity.
• Commissioning checks: product temperature measurements at representative slow-cooling positions.

A room-air display shows the air condition; it does not confirm that the centre of every meat pack has reached the specified endpoint.

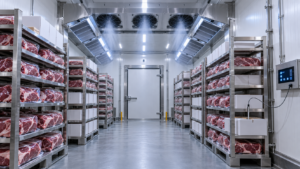

Visual Highlights: TunelGroup’s Meat Blast Freezer

The illustration shows how product handling and refrigeration can be brought together in a dedicated freezing room.

Loading and Airflow Arrangement

Stainless-steel racks and suitable pallets maintain planned air passages around the packaged meat. Supply and return paths are considered together during room design.

Refrigeration and Insulated Envelope

Low-temperature equipment, sealed insulated panels and a suitable freezer door work as one system. Insulation thickness and floor protection are confirmed for the project.

Product Core Temperature Monitoring

A probe in a representative product position helps confirm the freezing cycle before transfer to storage.

Illustrative image. Final room dimensions, equipment, packaging and loading arrangement depend on the approved project.

Benefits of Choosing TunelGroup for Meat Blast Freezing

• Product quality: a controlled freezing process supports texture and moisture retention.
• Repeatable production: defined batch conditions help standardize loading and dispatch.
• Capacity planning: equipment proposals are based on the required product throughput.
• Energy management: insulation, door use, fan operation and defrost are assessed together.
• Traceability: temperature records can document the performance of individual batches.
• Operational integration: room design considers packing, freezing and frozen storage as connected steps.

Why Choose TunelGroup for Your Meat Freezing Project?

TunelGroup brings room construction, refrigeration and controls into one engineering discussion. This approach aligns the equipment proposal with the way your facility prepares, loads and handles meat.

• Application review: meat type, packaging and production requirements evaluated before equipment selection.
• Coordinated components: panels, doors, refrigeration and evaporators considered together.
• Project-based configuration: a layout developed around available space and handling routes.
• Clear supply scope: equipment, transport, installation and commissioning responsibilities defined in the quotation.
• Technical documentation: operating information and project documents provided according to the agreed scope.
• Service access: maintenance clearances considered during the design stage.

Additional Benefits of TunelGroup Blast Freezers

• Production flexibility: different product formats can be evaluated with their own loading patterns and cycle requirements.
• Remote visibility: alarms and data logging can be included when specified for the project.
• Cold-chain coordination: freezing and storage capacities can be reviewed together to avoid handling delays.

Conclusion

A blast freezer for meat performs best when the product, packaging, refrigeration and airflow are designed as one process. Correct loading and core temperature monitoring help make the agreed cycle repeatable.

Freezing does not sterilize meat. Hygienic preparation and handling remain essential throughout processing, freezing and storage. Explore our meat blast freezing guide for more information about temperature, packaging and process control.

Price

The price of a blast freezer for meat depends on room dimensions, kilograms per batch, product entry temperature, the required freezing cycle, insulation, refrigeration, controls and installation scope.

For a project-specific quotation, provide the project location, meat format, package dimensions, daily output, available room space and electrical supply. Contact TunelGroup to discuss the required configuration.
